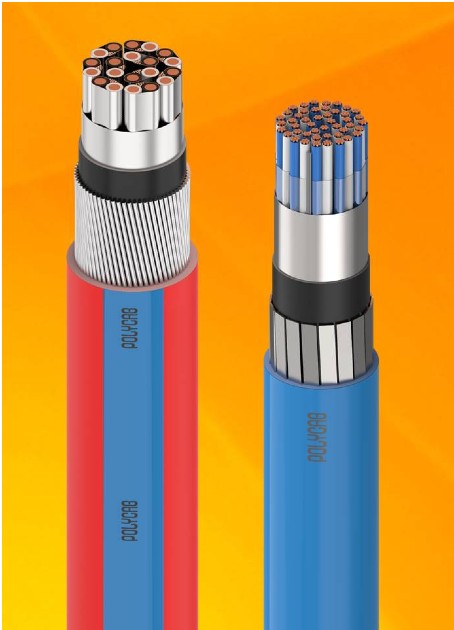

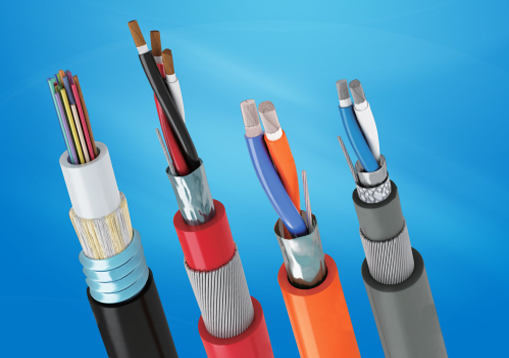

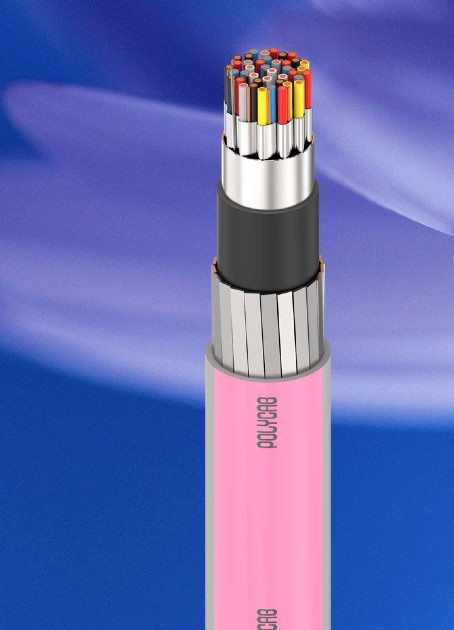

Instrumentation Cables
CONVEY LOW ENERGY ELECTRICAL SIGNALS
Instrumentation Cables are designed to meet the highest electrical, mechanical & physical requirements which are a prerequisite in today’s fast growing verticals like Oil & Gas, Power, Petrochemicals, Manufacturing, Food & Beverage, Waste Water Treatment, etc.

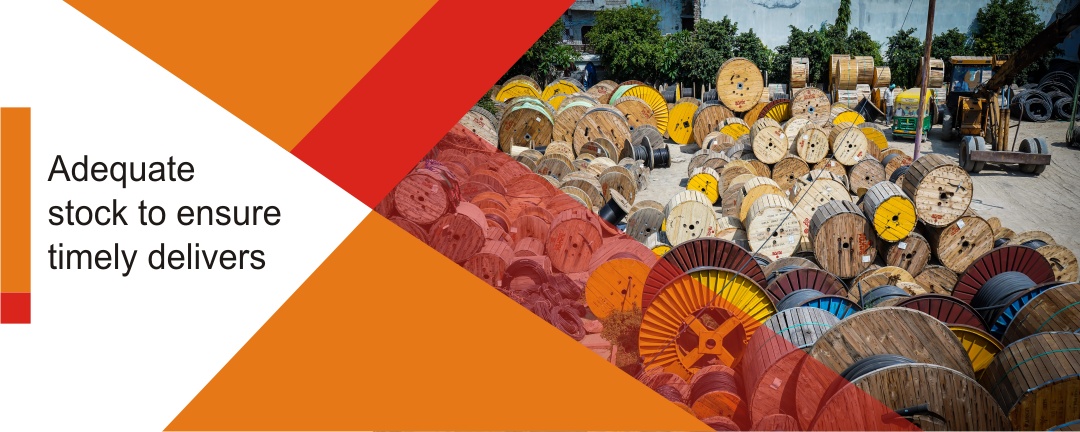

Instrumentation Cables in our ready stock:
- Overall Shielded-Unarmd Cables
- Overall Shielded-Armoured Cables
- Individual & Overall Shielded-Unarmd Cables
- Individual & Overall Shielded-Armoured Cables
Instrument Cables
Instrumentation Cables are designed to meet the highest electrical, mechanical & physical requirements which are a prerequisite in today’s fast growing verticals like Oil & Gas, Power, Petrochemicals, Manufacturing, Food & Beverage, Waste Water Treatment, etc.
Instrumentation Cables in our ready stock:
- Overall Shielded-Unarmd Cables
- Overall Shielded-Armoured Cables
- Individual & Overall Shielded-Unarmd Cables
- Individual & Overall Shielded-Armoured Cables

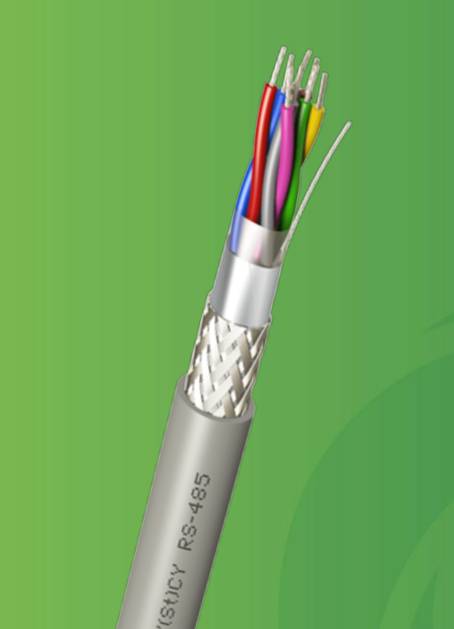

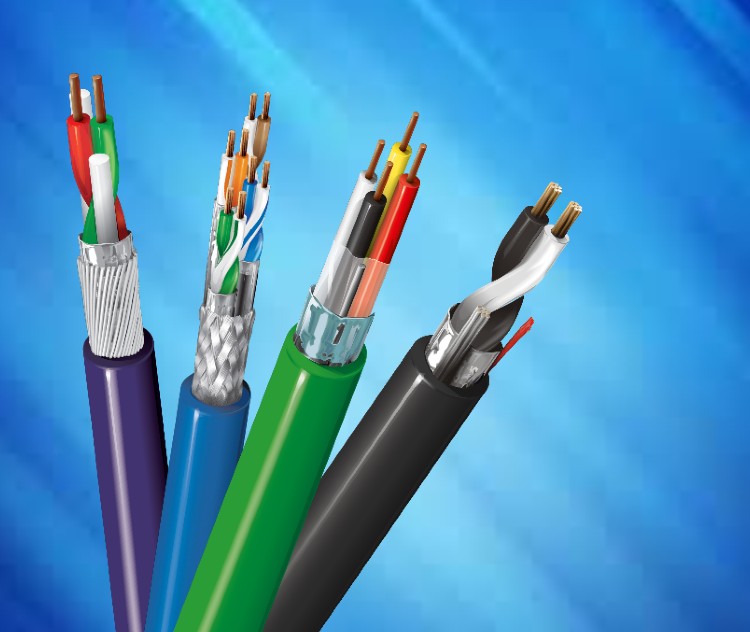

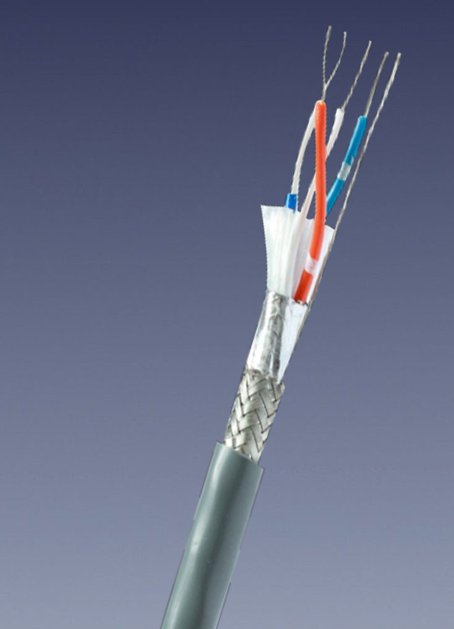

Rs 485 Cables
120 ohms
EIA-485 (formerly RS-485 or RS-485) is an OSI model physical layer electrical SPECIFICATION of a two-wire, [1] half-duplex, multipoint serial connection.
The value of each termination resistor should be equal to the cable impedance (typically, 120 ohms for twisted pairs).
Using an EIA-485 physical interface, the maximum distance achieved would be 4,000 ft. at 100kbps. A maximum of 247 nodes is possible.
Rs 485 Cables
EIA-485 (formerly RS-485 or RS-485) is an OSI model physical layer electrical SPECIFICATION of a two-wire, [1] half-duplex, multipoint serial connection.
The value of each termination resistor should be equal to the cable impedance (typically, 120 ohms for twisted pairs).
Using an EIA-485 physical interface, the maximum distance achieved would be 4,000 ft. at 100kbps. A maximum of 247 nodes is possible.

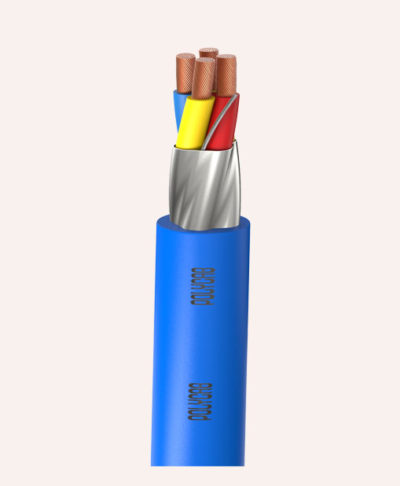

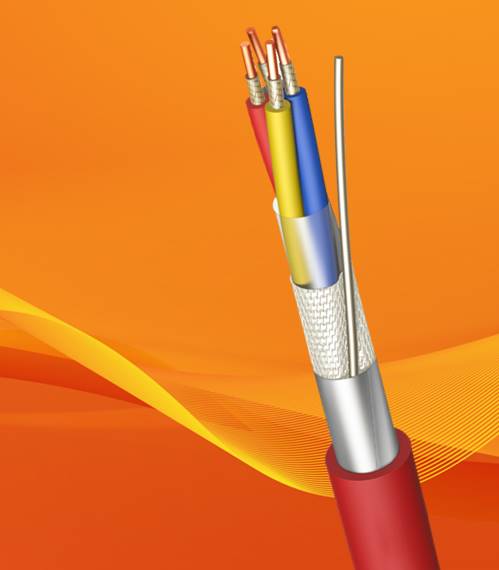

Fire Survival Cables
Fire survival cables are used for continuous operation of emergency circuits, zero emission of harmful smoke and fire containment in critical and hazardous applications.
Fire survival and circuit integrity cables which can operate continuously in the presence of fire up to three hours. These cables meet the following fire resistant standards:
IEC 60331-23—90 @750 C
IEC 60331-25–90 @750 C
BS6387 CWZ-180 @950
FIRE SURVIVAL CABLES
Fire survival cables are used for continuous operation of emergency circuits, zero emission of harmful smoke and fire containment in critical and hazardous applications.
Fire survival and circuit integrity cables which can operate continuously in the presence of fire up to three hours. These cables meet the following fire resistant standards:
IEC 60331-23—90 @750 C
IEC 60331-25–90 @750 C
BS6387 CWZ-180 @950

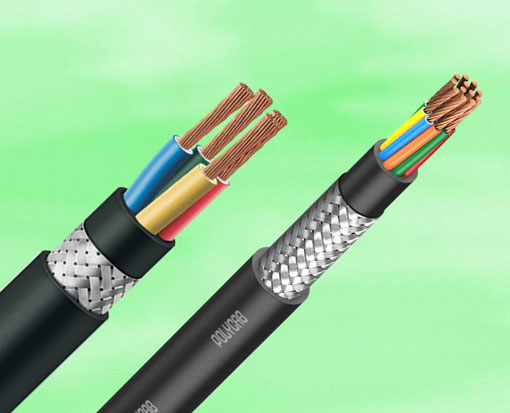

Industrial Braided Cables
A braid shield consists of groups of tinned or bare copper, one set woven in a clockwise direction and interwoven with another set in a counterclockwise direction.
Provide superior structural integrity, maintaining good flexibility.
Ideal for minimizing low frequency interference and have lower DC resistance than foil.
Braid shields are effective at audio, as well as RF ranges.
Industrial Braided Cables
A braid shield consists of groups of tinned or bare copper, one set woven in a clockwise direction and interwoven with another set in a counterclockwise direction.
Provide superior structural integrity, maintaining good flexibility.
Ideal for minimizing low frequency interference and have lower DC resistance than foil.
Braid shields are effective at audio, as well as RF ranges.

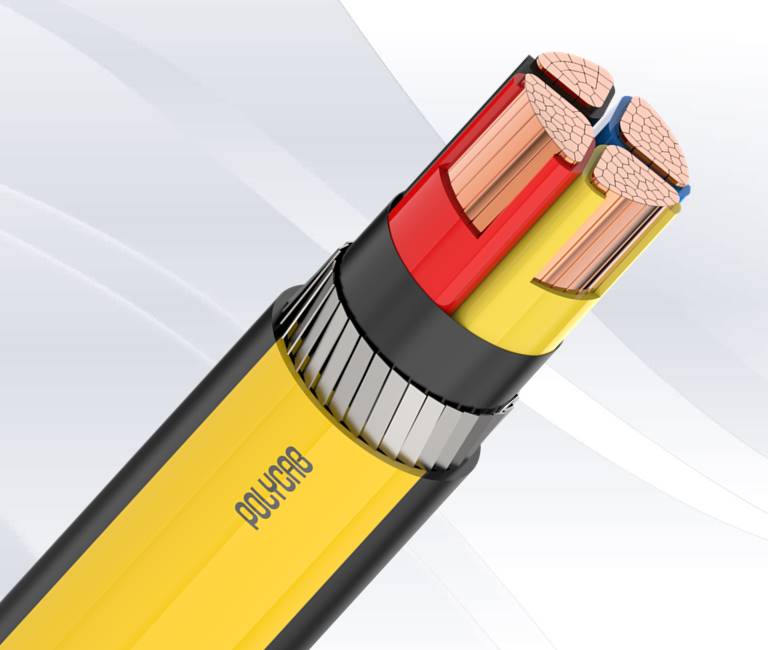

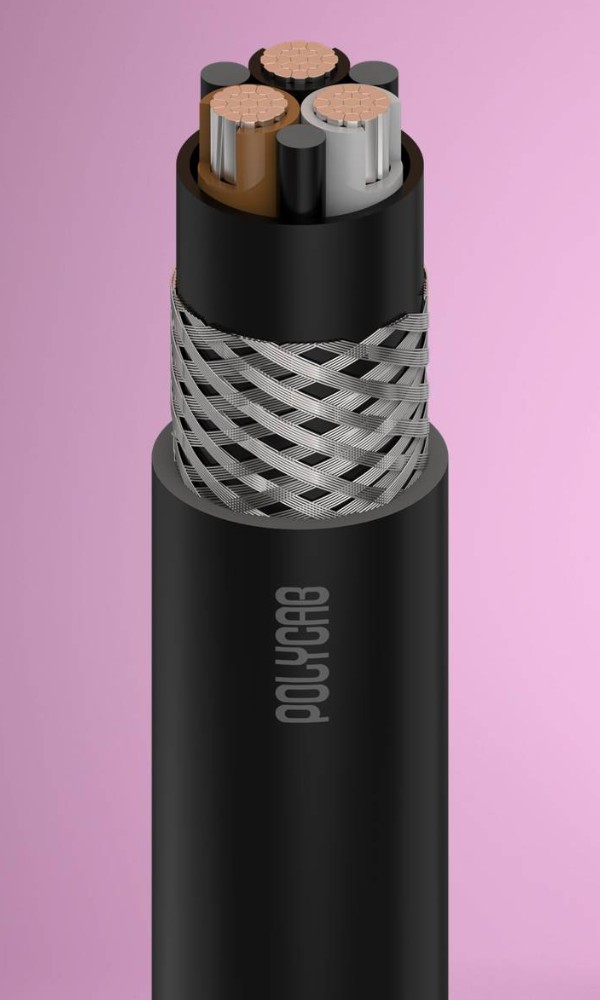

Copper Armoured Cables
We keep big Sizes of Copper Armoured Cable Ready in our Stock, which are hard to get.
Specification: Stranded copper conductor, XLPE insulated, cores laid up, PVC tape inner sheathed, armoured with galvanized wire / flat strip, extruded FRLS sheathed.
Range: 1 core x 150 – 300 sq mm, 3.5 core x 25 sq mm – 300 sq mm, 4 core x 70 sq mm- 240 sq mm
Copper Armoured Cables
We keep big Sizes of Copper Armoured Cable Ready in our Stock, which are hard to get.
Specification: Stranded copper conductor, XLPE insulated, cores laid up, PVC tape inner sheathed, armoured with galvanized wire / flat strip, extruded FRLS sheathed.
Range: 1 core x 150 – 300 sq mm, 3.5 core x 25 sq mm – 300 sq mm, 4 core x 70 sq mm- 240 sq mm
Cables for Rolling Stock
Electron Beam Cross-linking process enhances the following properties of a cable
- Short Circuit Resistance
- Fire Properties, like Flame Retardancy
- Thermal Properties, like Temperature Index (hence, higher current carrying capacity)
- Electrical Properties (better dielectric properties, hence thin walled)
- Mechanical Properties (Abrasion Resistance, Elongation at Break, Tensile Strength
- Chemical Properties, like Resistance to Oil, Diesel, Solvents, Lubricants etc.
- Ageing Properties (higher Life Time)
Cables for Rolling Stock
Electron Beam Cross-linking process enhances the following properties of a cable
- Short Circuit Resistance
- Fire Properties, like Flame Retardancy
- Thermal Properties, like Temperature Index (hence, higher current carrying capacity)
- Electrical Properties (better dielectric properties, hence thin walled)
- Mechanical Properties (Abrasion Resistance, Elongation at Break, Tensile Strength
- Chemical Properties, like Resistance to Oil, Diesel, Solvents, Lubricants etc.
- Ageing Properties (higher Life Time)

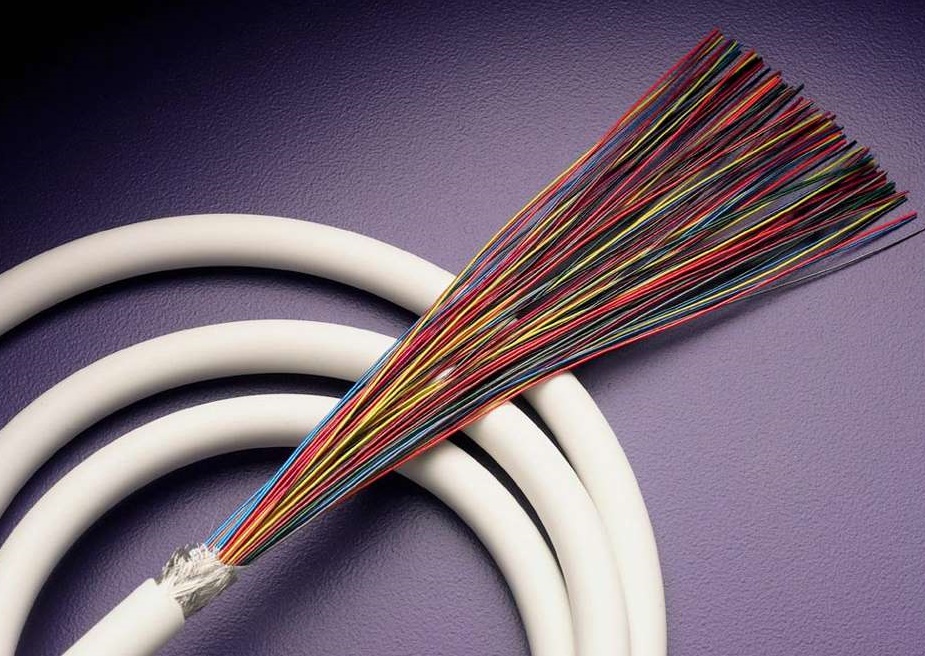

Medical Cables
We are Certified Manufacturer, Importer & Stockist of Raw Medical cables.
SPO2 Cables: Soft, comfortable, extremely flexible, non-toxic, all medical grade material.
ECG/ EKG Cables: We guarantee a safe and reliable signal transmission through our high quality Diagnostics 10C EKG Medical Cables and EKG electrode cables.
Cables for Temperature Probes: Compatible with probes of multiple brands.
Endoscopy Cables: Our Raw Endoscopy cables gives result in endoscopy, excellent image resolution that makes diagnosis safe.
Ultrasound Cables: In sync with Biological Compatibility standards.
Medical Cables
We are Certified Manufacturer, Importer & Stockist of Raw Medical cables like:
SPO2 Cables: Soft and comfortable, non-toxic, all medical grade material. Extremely flexible, compatible with disinfectants, and solid for SPO2 monitor applications.
ECG/ EKG Cables: We guarantee a safe and reliable signal transmission through our high quality Diagnostics 10C EKG Medical Cables and EKG electrode cables.
Cables for Temperature Probes: Compatible with probes of multiple brands.
Endoscopy Cables: Our Raw Endoscopy cables gives result in endoscopy, excellent image resolution that makes safe diagnosis.
Ultrasound Cable: Shipped in accordance with Biological Compatibility standards.
